Polypropylene (PP) Integrated Service Saddles in House Service Connections

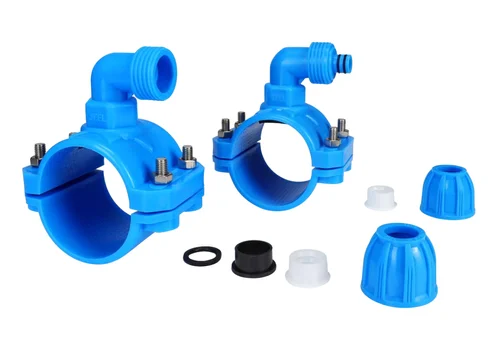

PP Integrated saddle is a homogenous product, which include PP Mechanical Clamp Saddle integrated with SS 316 flow control valve and single piece moulded SS 304 hardware with integrated compression adaptors.
PP integrated service saddles with built-in flow control valves represent an advanced and highly efficient solution for house service connections. These saddles not only enable a secure and reliable tapping from a main water supply pipe to a household connection but also incorporate a flow control valve within the saddle unit itself.
Product Specifications
PP integrated service saddles with built-in flow control valves represent an advanced and highly efficient solution for house service connections. These saddles not only enable a secure and reliable tapping from a main water supply pipe to a household connection but also incorporate a flow control valve within the saddle unit itself.
| Product Name | Particulars | Specifications |
PP Integrated Saddle |
Size | 63 mm, 75 mm, 90 mm, 110 mm, 125 mm, 140 mm, 160 mm |
| FCV Material | SS 316, SS 304 | |
| Water Flow | 5 Lpm, 10 Lpm, 15 Lpm into 0.5 Bar Pressure +/- 20 % Tolerance | |
| Nut Bolt | SS | |
| Other Component | Nut/Cap, Seal Bush | |
| Nut/Cap | Polypropylene | |
| Rubber Grommet/ Seal/ Bush | Food Grade NBR/EPDM | |
| Pressure Rating | PN 16 |
