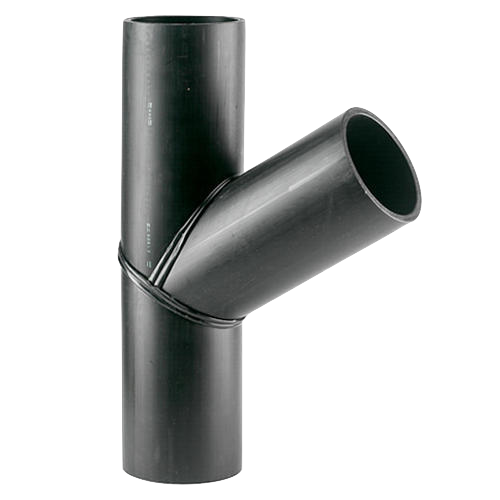

HDPE Fabricated Y
- Diameter: DN 63 mm to DN 1000 mm
- Pressure Class: PN 6, PN 10, PN 12.5, PN 16, PN 20
- Material: Virgin PE 80 or PE 100
- Type: Fabricated
- Standards: ISO 4427-3, IS 8360:2022, IS 4984:2016
- Packing: By Bags
- MOQ: Negotiable
- Warranty: 15 Years for Normal Use
- Product Inspection: Raw Material, Finished Product and Third Party Inspection upto Request
- Place of Origin: India
An HDPE fabricated Y fitting is a custom-made component used in high-density polyethylene (HDPE) piping systems to facilitate branching of the flow in a Y-shaped configuration. This fitting allows for the smooth division of fluid or gas flow into two separate directions or the merging of two flows into a single line.
Product Specifications
The Fabricated HDPE Pipe Y is available in sizes ranging from DN 63 mm to DN 1000 mm, with the following dimensions:
| Product Name | Size | Product Code |
Fabricated
|
63 mm | MPSFBY63 |
| 75 mm | MPSFBY75 | |
| 90 mm | MPSFBY90 | |
| 110 mm | MPSFBY110 | |
| 125 mm | MPSFBY125 | |
| 140 mm | MPSFBY140 | |
| 160 mm | MPSFBY160 | |
| 180 mm | MPSFBY180 | |
| 200 mm | MPSFBY200 | |
| 225 mm | MPSFBY225 | |
| 250 mm | MPSFBY250 | |
| 280 mm | MPSFBY280 | |
| 315 mm | MPSFBY315 | |
| 355 mm | MPSFBY355 | |
| 400 mm | MPSFBY400 | |
| 450 mm | MPSFBY450 | |
| 500 mm | MPSFBY500 | |
| 560 mm | MPSFBY560 | |
| 630 mm | MPSFBY630 | |
| 710 mm | MPSFBY710 | |
| 800 mm | MPSFBY800 | |
| 900 mm | MPSFBY900 | |
| 1000 mm | MPSFBY1000 |
