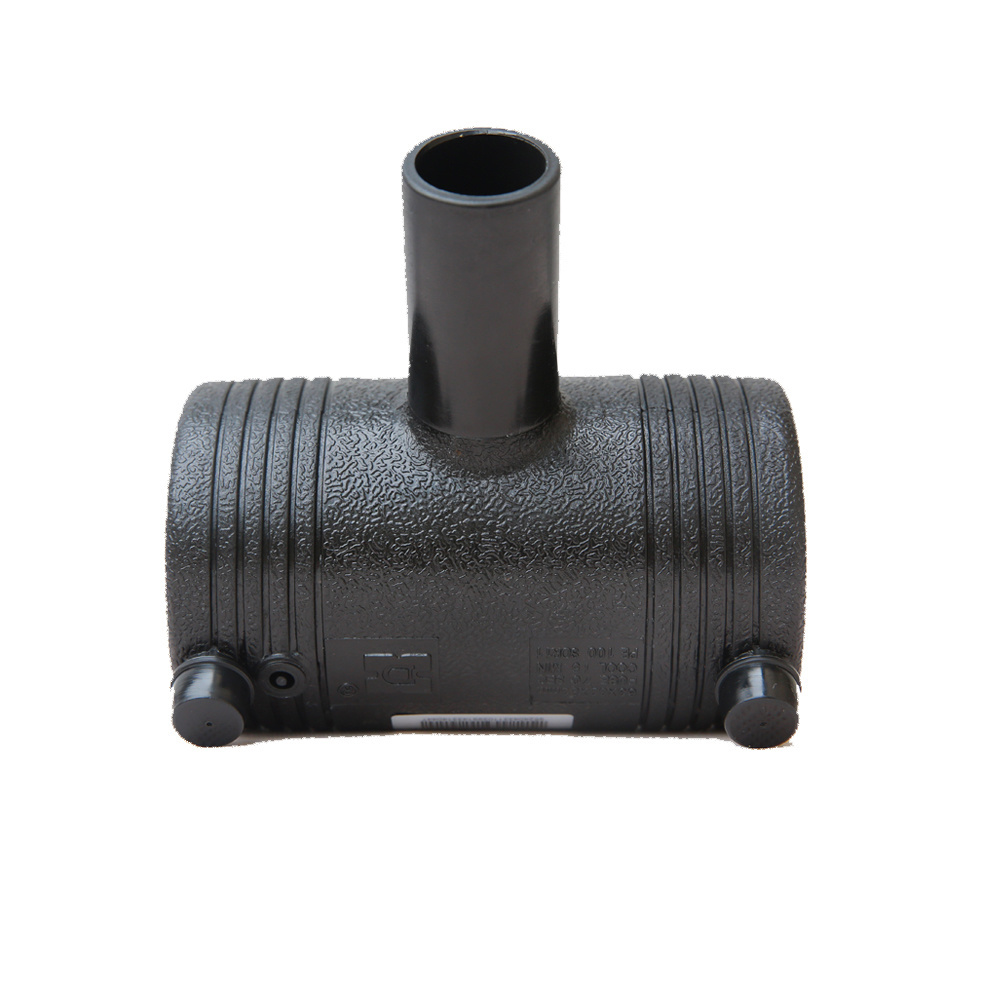

HDPE Electrofusion Reducing Tee
- Diameter: DN 63 mm to DN 315 mm
- Pressure Class: SDR 10, SDR 16
- Material: PE 100
- Type: Injection Moulded
- Standards: ISO 4427-3
- Packing: By Boxes
- MOQ: Negotiable
- Warranty: 15 Years for Normal Use
- Product Inspection: Raw Material, Finished Product and Third Party Inspection upto Request
- Place of Origin: India
An HDPE electrofusion reducing tee is a pipe fitting designed to connect three HDPE pipes of different diameters, allowing for a reduction in flow size from the main pipeline to a branch. It is widely used in water supply, gas distribution, and industrial piping systems. The reducing tee features integrated electrical heating coils, which, when connected to an electrofusion machine, melt the surface of the fitting and the pipes, forming a seamless, leak-proof joint.
Marwal Fusion HDPE Electrofusion fittings are manufactured using virgin PE100 raw materials sourced from renowned suppliers, ensuring excellent resistance and durability. Primarily used in HDPE piping systems for water and gas applications, these fittings meet stringent quality standards. They fully comply with ISO 4427-3, IS 4984:2016, EN12201-3, EN1555, and EN ISO 15494 standards, guaranteeing reliable performance and safety in various infrastructure projects.
Product Specifications
The Injection Moulded HDPE Electrofusion Reducing Tee is available in sizes ranging from DN 63 mm to DN 315 mm, with the following dimensions:
| Product Name | Size | Product Code |
Injection Moulded
|
75 mm x 63 mm | MPSEFRTEE7563 |
| 90 mm x 50 mm | MPSEFRTEE9050 | |
| 90 mm x 63 mm | MPSEFRTEE9063 | |
| 90 mm x 75 mm | MPSEFRTEE9075 | |
| 110 mm x 50 mm | MPSEFRTEE11050 | |
| 110 mm x 63 mm | MPSEFRTEE11063 | |
| 110 mm x 75 mm | MPSEFRTEE11075 | |
| 110 mm x 90 mm | MPSEFRTEE11090 | |
| 125 mm x 63 mm (Kit) | MPSEFRTEE12563 | |
| 125 mm x 75 mm (Kit) | MPSEFRTEE12575 | |
| 125 mm x 90 mm (Kit) | MPSEFRTEE12590 | |
| 125 mm x 110 mm (Kit) | MPSEFRTEE125110 | |
| 140 mm x 63 mm (Kit) | MPSEFRTEE14063 | |
| 140 mm x 75 mm (Kit) | MPSEFRTEE14075 | |
| 140 mm x 90 mm (Kit) | MPSEFRTEE14090 | |
| 140 mm x 110 mm (Kit) | MPSEFRTEE140110 | |
| 140 mm x 125 mm (Kit) | MPSEFRTEE140125 | |
| 160 mm x 90 mm (Kit) | MPSEFRTEE16090 | |
| 160 mm x 110 mm (Kit) | MPSEFRTEE160110 | |
| 160 mm x 125 mm (Kit) | MPSEFRTEE160125 | |
| 160 mm x 140 mm (Kit) | MPSEFRTEE160140 | |
| 180 mm x 90 mm (Kit) | MPSEFRTEE18090 | |
| 180 mm x 110 mm (Kit) | MPSEFRTEE180110 | |
| 180 mm x 125 mm (Kit) | MPSEFRTEE180125 | |
| 180 mm x 140 mm (Kit) | MPSEFRTEE180140 | |
| 180 mm x 160 mm (Kit) | MPSEFRTEE180160 | |
| 200 mm x 90 mm (Kit) | MPSEFRTEE20090 | |
| 200 mm x 110 mm (Kit) | MPSEFRTEE200110 | |
| 200 mm x 125 mm (Kit) | MPSEFRTEE200125 | |
| 225 mm x 90 mm (Kit) | MPSEFRTEE22590 | |
| 225 mm x 110 mm (Kit) | MPSEFRTEE225110 | |
| 225 mm x 125 mm (Kit) | MPSEFRTEE225125 | |
| 225 mm x 140 mm (Kit) | MPSEFRTEE225140 | |
| 225 mm x 160 mm (Kit) | MPSEFRTEE225160 | |
| 225 mm x 180 mm (Kit) | MPSEFRTEE225180 | |
| 225 mm x 200 mm (Kit) | MPSEFRTEE225200 | |
| 250 mm x 90 mm (Kit) | MPSEFRTEE25090 | |
| 250 mm x 110 mm (Kit) | MPSEFRTEE250110 | |
| 250 mm x 125 mm (Kit) | MPSEFRTEE250125 | |
| 250 mm x 140 mm (Kit) | MPSEFRTEE250140 | |
| 250 mm x 160 mm (Kit) | MPSEFRTEE250160 | |
| 250 mm x 180 mm (Kit) | MPSEFRTEE250180 | |
| 250 mm x 200 mm (Kit) | MPSEFRTEE250200 | |
| 250 mm x 225 mm (Kit) | MPSEFRTEE250225 | |
| 280 mm x 110 mm (Kit) | MPSEFRTEE280110 | |
| 280 mm x 125 mm (Kit) | MPSEFRTEE280125 | |
| 280 mm x 140 mm (Kit) | MPSEFRTEE280140 | |
| 280 mm x 160 mm (Kit) | MPSEFRTEE280160 | |
| 280 mm x 180 mm (Kit) | MPSEFRTEE280180 | |
| 280 mm x 200 mm (Kit) | MPSEFRTEE280200 | |
| 280 mm x 225 mm (Kit) | MPSEFRTEE280225 | |
| 280 mm x 250 mm (Kit) | MPSEFRTEE280250 | |
| 315 mm x 110 mm (Kit) | MPSEFRTEE315110 | |
| 315 mm x 160 mm (Kit) | MPSEFRTEE315160 | |
| 315 mm x 200 mm (Kit) | MPSEFRTEE315200 | |
| 315 mm x 250 mm (Kit) | MPSEFRTEE315250 |
