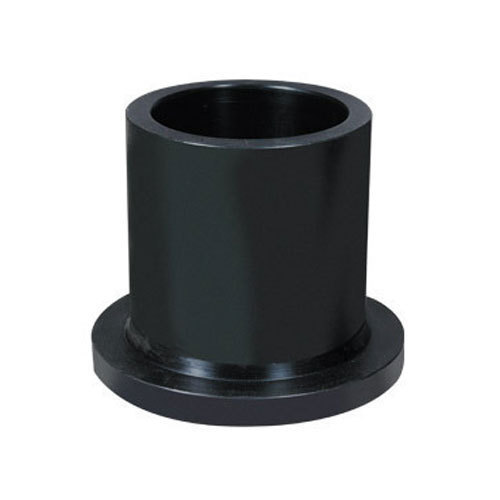

The HDPE Butt Fusion/Spigot Tail Piece is a fitting used to connect HDPE pipes to flanged components, such as valves or pumps, in piping systems. It features a spigot end for butt fusion with the pipe, and a flanged end for bolting to other equipment. This design allows for easy disassembly and maintenance in applications like water treatment, gas distribution, and industrial systems. The butt fusion process creates a strong, leak-proof joint, while HDPE’s corrosion resistance, flexibility, and durability make the tail piece suitable for long-term use in harsh environmental conditions.

Marwal Fusion HDPE butt fusion fittings are manufactured using virgin PE80 or PE100 raw materials sourced from renowned suppliers, ensuring excellent resistance and durability. Primarily used in HDPE piping systems for water and gas applications, these fittings meet stringent quality standards. They fully comply with IS 8008:2022, ISO 4427-3, IS 4984:2016, EN12201-3, EN1555, and EN ISO 15494 standards, guaranteeing reliable performance and safety in various infrastructure projects.

Product Specifications

The Injection Moulded HDPE Butt Fusion/Spigot Tail Piece is available in sizes ranging from DN 63 mm to DN 630 mm, with the following dimensions:

Product Name	Size	Product Code
Injection Moulded HDPE Butt Fusion Tail Piece	63 mm	MPSBFTAIL63
	75 mm	MPSBFTAIL75
	90 mm	MPSBFTAIL90
	110 mm	MPSBFTAIL110
	125 mm	MPSBFTAIL125
	140 mm	MPSBFTAIL140
	160 mm	MPSBFTAIL160
	180 mm	MPSBFTAIL180
	200 mm	MPSBFTAIL200
	225 mm	MPSBFTAIL225
	250 mm	MPSBFTAIL250
	280 mm	MPSBFTAIL280
	315 mm	MPSBFTAIL315
	355 mm	MPSBFTAIL355
	400 mm	MPSBFTAIL400
	450 mm	MPSBFTAIL450
	500 mm	MPSBFTAIL500
	560 mm	MPSBFTAIL560
	630 mm	MPSBFTAIL630
