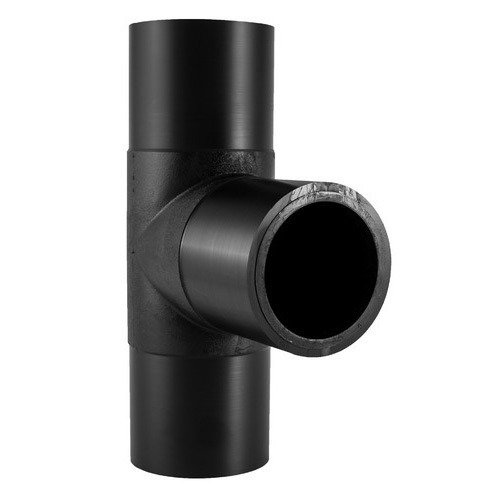

An HDPE Butt Fusion/Spigot Equal Tee is a fitting used in HDPE piping systems to connect three sections of pipe at 90-degree angles, forming a “T” shape. Designed for butt fusion/electrofusion welding, these fittings provide a leak-proof, seamless connection, ensuring strength and durability in high-pressure systems. Equal tees allow for uniform flow distribution across all three branches, making them ideal for water, gas, and sewage applications. With its corrosion resistance and ability to withstand harsh environments, the HDPE Equal Tee is widely used in infrastructure projects, industrial pipelines, and irrigation systems.

Marwal Fusion HDPE butt fusion fittings are manufactured using virgin PE80 or PE100 raw materials sourced from renowned suppliers, ensuring excellent resistance and durability. Primarily used in HDPE piping systems for water and gas applications, these fittings meet stringent quality standards. They fully comply with IS 8008:2022, ISO 4427-3, IS 4984:2016, EN12201-3, EN1555, and EN ISO 15494 standards, guaranteeing reliable performance and safety in various infrastructure projects.

Product Specifications

The Injection Moulded HDPE Butt Fusion/Spigot Equal Tee is available in sizes ranging from DN 63 mm to DN 630 mm, with the following dimensions:

Product Name	Size	Product Code
Injection Moulded HDPE Butt Fusion Equal Tee	63 mm	MPSBFTEE63
	75 mm	MPSBFTEE75
	90 mm	MPSBFTEE90
	110 mm	MPSBFTEE110
	125 mm	MPSBFTEE125
	140 mm	MPSBFTEE140
	160 mm	MPSBFTEE160
	180 mm	MPSBFTEE180
	200 mm	MPSBFTEE200
	225 mm	MPSBFTEE225
	250 mm	MPSBFTEE250
	280 mm	MPSBFTEE280
	315 mm	MPSBFTEE315
	355 mm	MPSBFTEE355
	400 mm	MPSBFTEE400
	450 mm	MPSBFTEE450
	500 mm	MPSBFTEE500
	560 mm	MPSBFTEE560
	630 mm	MPSBFTEE630
