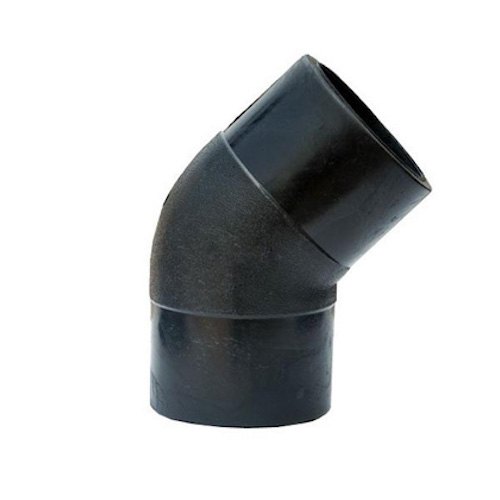

An HDPE pipe butt fusion/spigot 45-degree elbow is a fitting designed to change the direction of HDPE pipelines by 45 degrees. It is commonly used in water distribution, gas systems, and industrial piping where gradual directional changes are needed. The butt fusion process involves heating the ends of the pipe and the elbow, then fusing them to form a strong, seamless joint. This results in a leak-proof and highly durable connection. The elbow’s HDPE material offers excellent resistance to corrosion, chemicals, and environmental stress, making it ideal for long-term performance in both underground and above-ground installations.

Marwal Fusion HDPE butt fusion fittings are manufactured using virgin PE80 or PE100 raw materials sourced from renowned suppliers, ensuring excellent resistance and durability. Primarily used in HDPE piping systems for water and gas applications, these fittings meet stringent quality standards. They fully comply with IS 8008:2022, ISO 4427-3, IS 4984:2016, EN12201-3, EN1555, and EN ISO 15494 standards, guaranteeing reliable performance and safety in various infrastructure projects.

Product Specifications

The Injection Moulded HDPE 45-degree butt fusion/spigot elbow is available in sizes ranging from DN 63 mm to DN 630 mm, with the following dimensions:

Product Name	Size	Product Code
Injection Moulded HDPE Butt Fusion 22.5 Degree Elbow	63 mm	MPSBF2BEND63
	75 mm	MPSBF2BEND75
	90 mm	MPSBF2BEND90
	110 mm	MPSBF2BEND110
	125 mm	MPSBF2BEND125
	140 mm	MPSBF2BEND140
	160 mm	MPSBF2BEND160
	180 mm	MPSBF2BEND180
	200 mm	MPSBF2BEND200
	225 mm	MPSBF2BEND225
	250 mm	MPSBF2BEND250
	280 mm	MPSBF2BEND280
	315 mm	MPSBF2BEND315
	355 mm	MPSBF2BEND355
	400 mm	MPSBF2BEND400
	450 mm	MPSBF2BEND450
	500 mm	MPSBF2BEND500
	560 mm	MPSBF2BEND560
	630 mm	MPSBF2BEND630
